PANDUIT Edge clip
概述

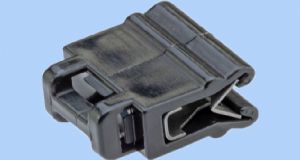

Edge Clip Cable Tie Mounts
New edge clip cable tie mounts from Panduit help secure wire and cable bundles with versatile mounting to edges. Panduit heavy-duty cable ties and mounts are made of rugged, highly durable materials; ideal for automobiles, trains, heavy equipment, trucks, and solar applications.
| Part Number |
Saddle
Fixation
(for anchoring
cable tie)
|
Flange Thickness | Bundle Orientation | Style |
Cable Tie
and/or
Compatible Cross Section
|
|
|
CME12-M300 | Edge-fixed (E) | .7mm - 3mm (12) |
Parallel
(A)
or Perpendicular (B)
|
Mount only | M, I, S |
|
CME24-M300 | Edge-fixed (E) | 3mm - 6mm (24) | |||
|
CMS12-M300 | Side-fixed (S) | .7mm - 3mm (12) | |||
|
CMS24-M300 | Side-fixed (S) | 3mm - 6mm (24) | |||
|
CMEA12-2S-D300* | Edge-fixed (E) | .7mm - 3mm (12) | Parallel (A) | Cable Tie Assembly | PLT2S-300 |
|
CMEA24-2S-D300* | Edge-fixed (E) | 3mm - 6mm (24) | |||
|
CMSA12-2S-D300* | Side-fixed (S) | .7mm - 3mm (12) | |||
|
CMSA24-2S-D300* | Side-fixed (S) | 3mm - 6mm (24) | |||
|
CMEB12-2S-D300* | Edge-fixed (E) | .7mm - 3mm (12) | Perpendicular (B) | Cable Tie Assembly | PLT2S-300 |
|
CMEB24-2S-D300* | Edge-fixed (E) | 3mm - 6mm (24) | |||
|
CMSB12-2S-D300* | Side-fixed (S) | .7mm - 3mm (12) | |||
|
CMSB24-2S-D300* | Side-fixed (S) | 3mm - 6mm (24) | |||
|
CMEA12-B2S-D300 | Edge-fixed (E) | .7mm - 3mm (12) | Parallel (A) | Cable Tie Assembly | BT2S-300 |
|
CMEA24-B2S-D300 | Edge-fixed (E) | 3mm - 6mm (24) | |||
|
CMSA12-B2S-D300 | Side-fixed (S) | .7mm - 3mm (12) | |||
|
CMSA24-B2S-D300 | Side-fixed (S) | 3mm - 6mm (24) | |||
|
CMEB12-B2S-D300 | Edge-fixed (E) | .7mm - 3mm (12) | Perpendicular (B) | Cable Tie Assembly | BT2S-300 |
|
CMEB24-B2S-D300 | Edge-fixed (E) | 3mm - 6mm (24) | |||
|
CMSB12-B2S-D300 | Side-fixed (S) | .7mm - 3mm (12) | |||
|
CMSB24-B2S-D300 | Side-fixed (S) | 3mm - 6mm (24) |
