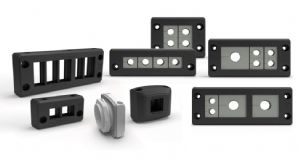

CEMBRE EWO 電纜引入框架
概述

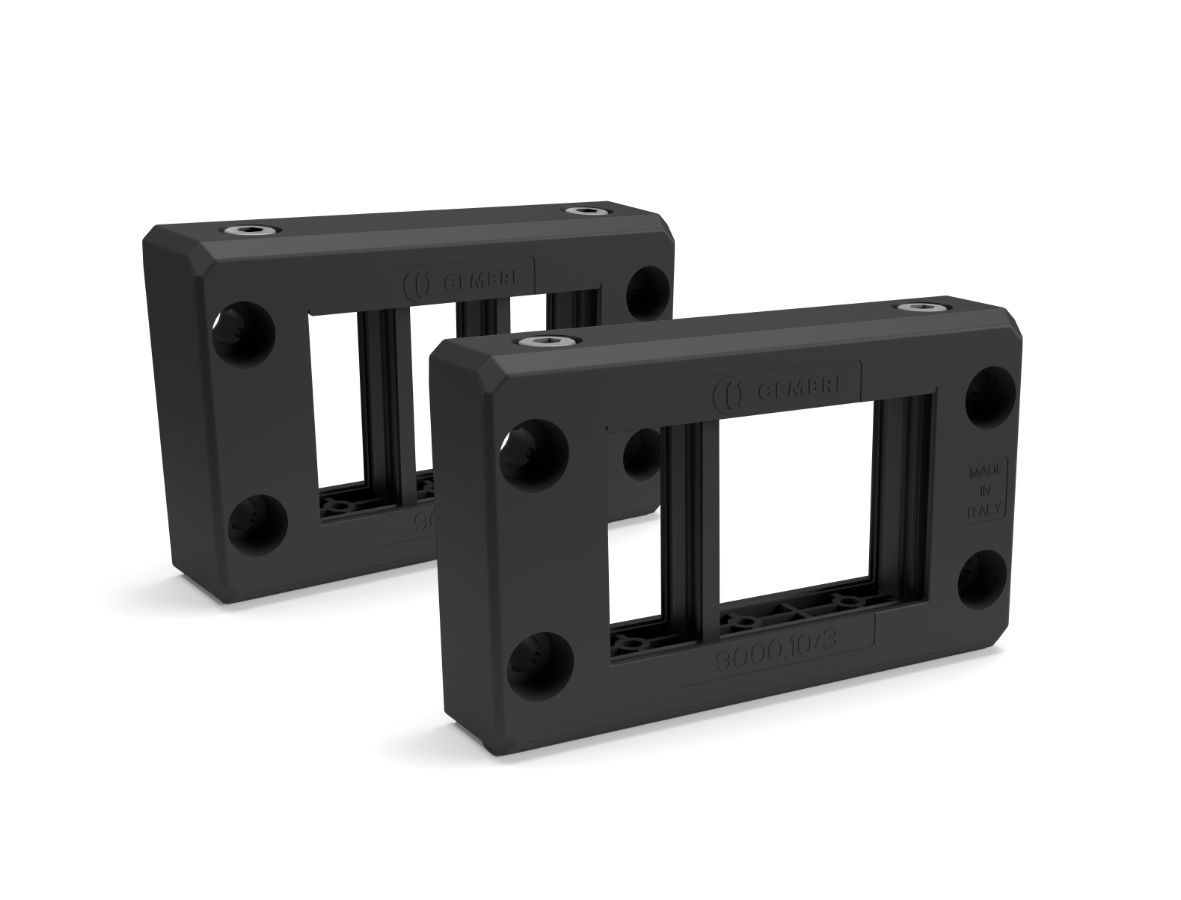

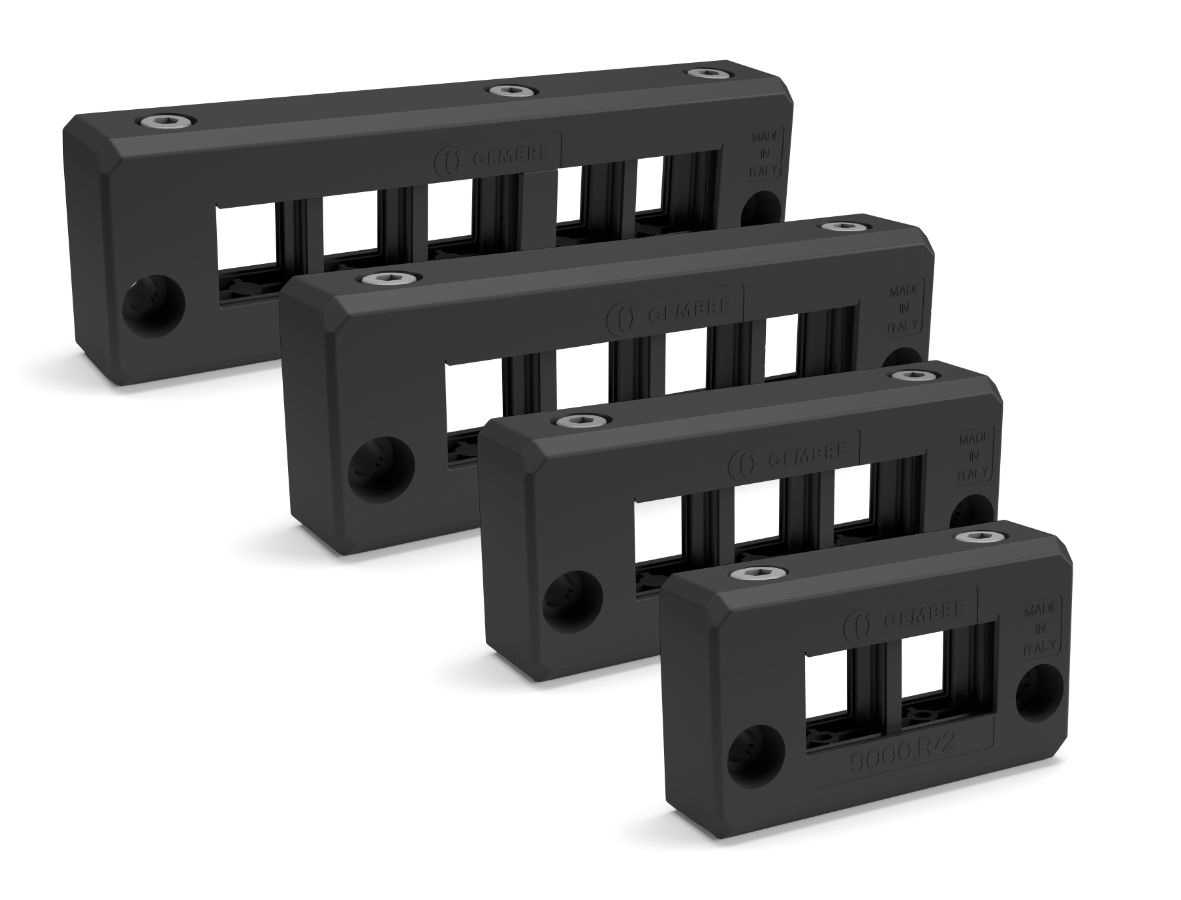

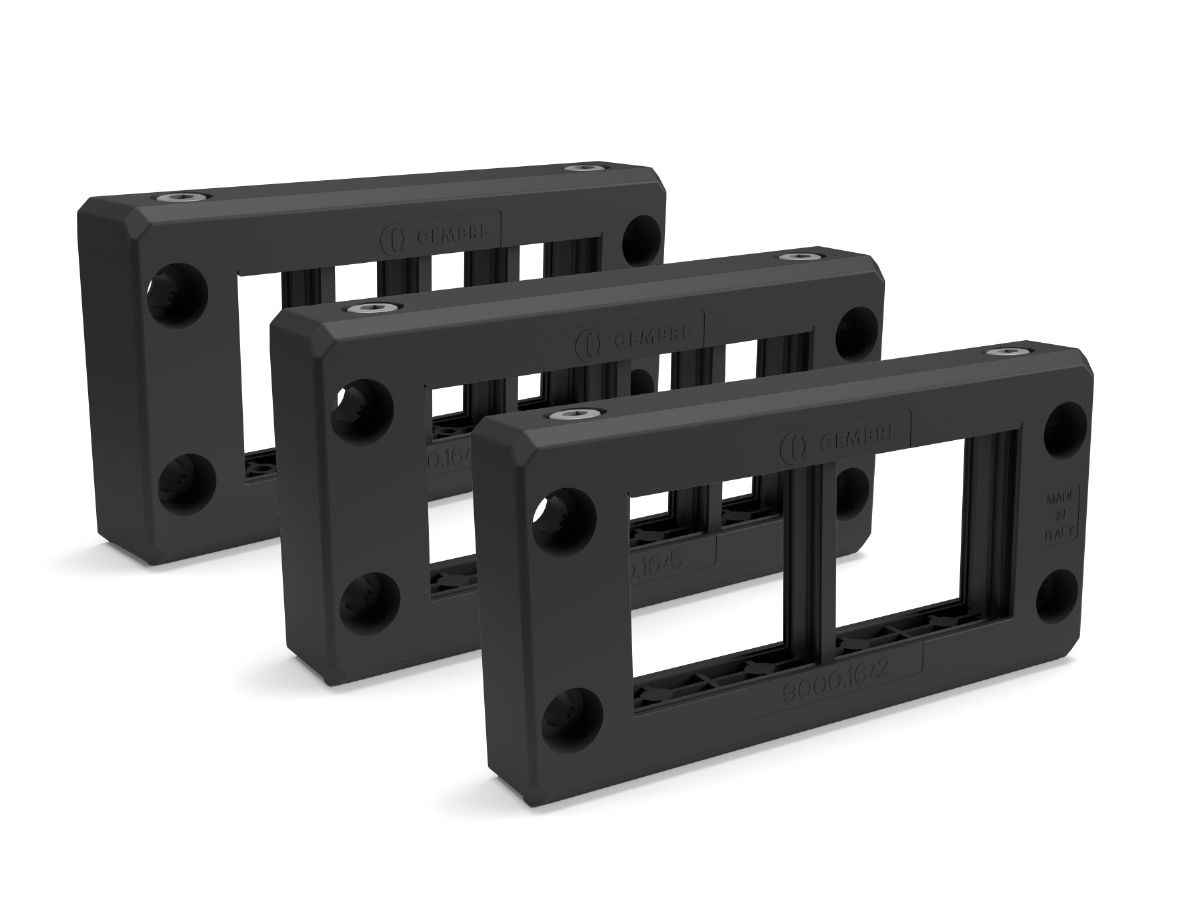

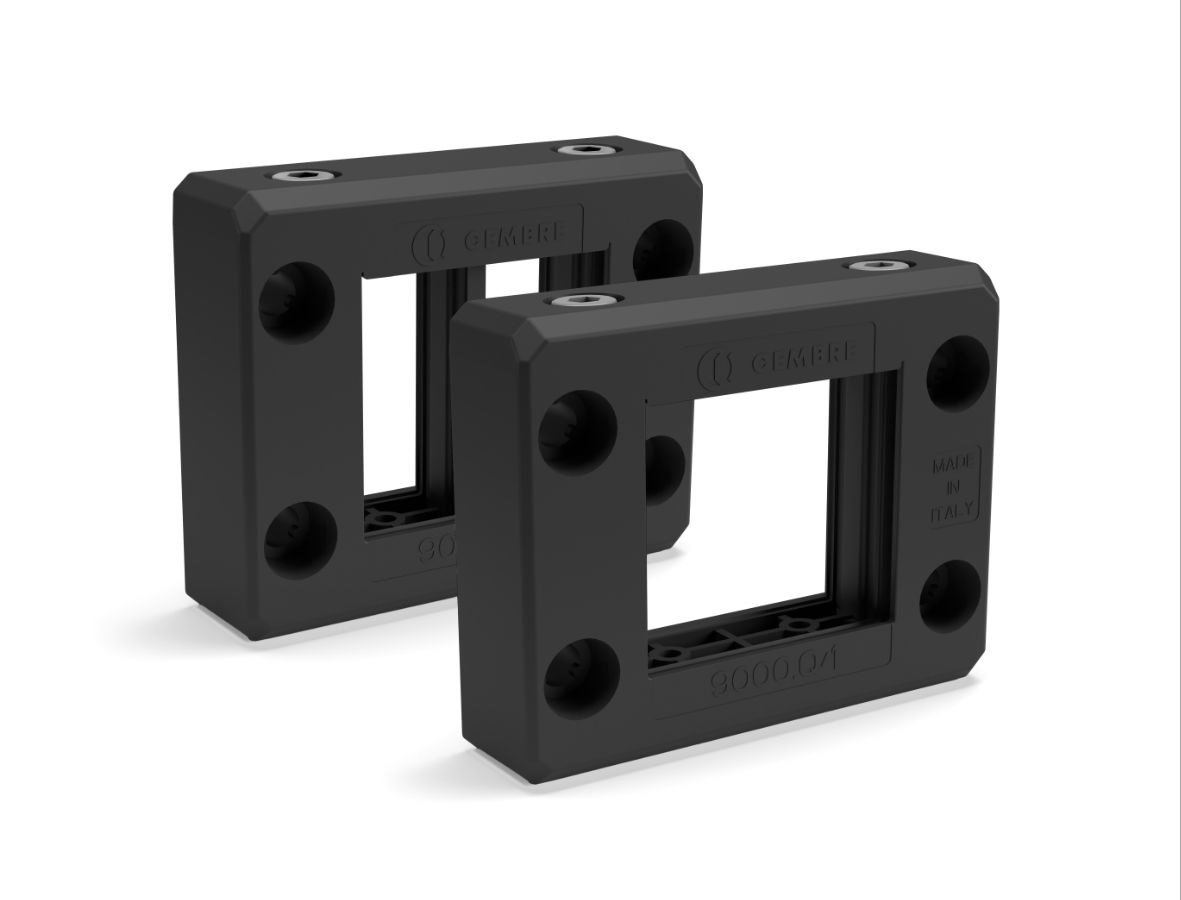

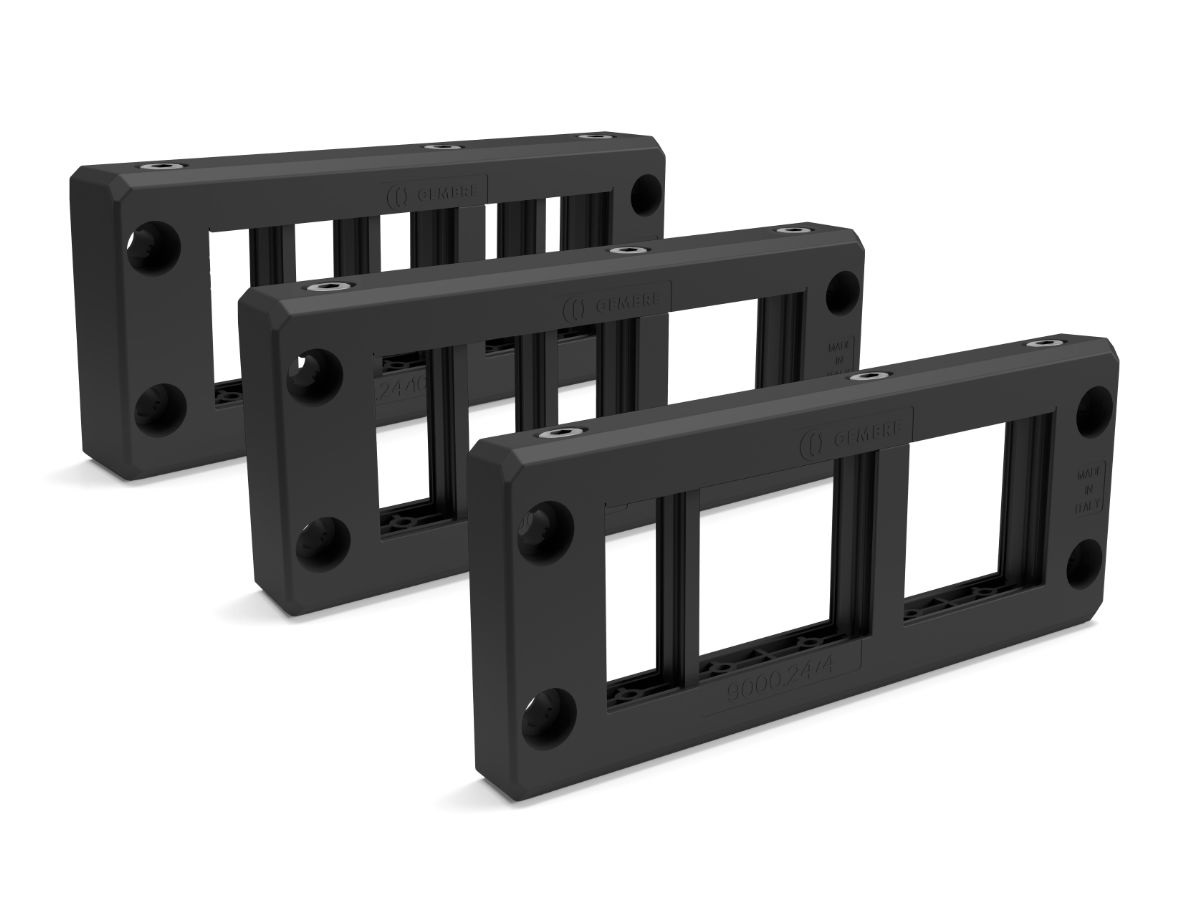

適用于預定電纜和附件的分體式電纜引入系統

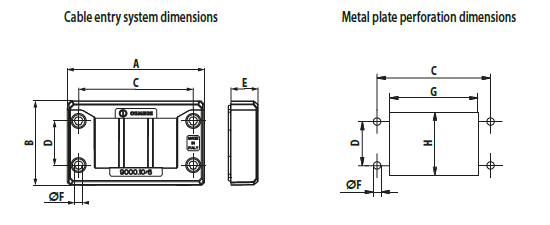

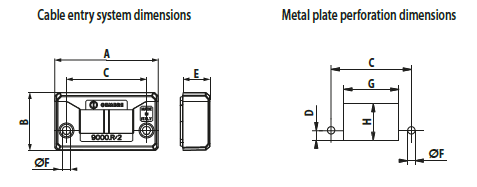

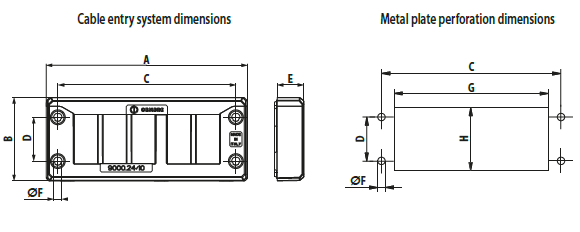

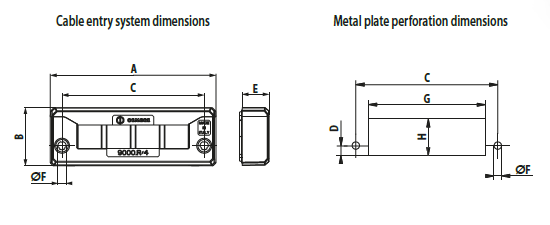

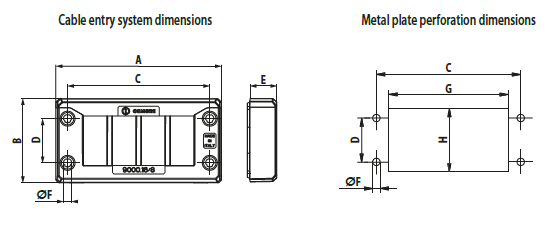

| 系列 | Cable entry system dimensions | 圖例 |
型號
|
小墊圈 數量 |
大墊圈 數量 |
A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
?F
(mm)
|
G
(mm)
|
H
(mm)
|
|
9000.10 |
|
|
9000.10/3 | 2 | 1 | 99.5 | 61 | 83 | 32 | 19.5 | 5.5 | 65 | 36/46 |
 |
9000.10/6 | 6 | 0 | ||||||||||
|
9000.16 |
|
|
9000.16/2 | 0 | 2 | 120 | 61 | 103 | 32 | 19.5 | 5.5 | 86 | 36/46 |
|
9000.16/5 | 4 | 1 | ||||||||||
|
9000.16/8 | 8 | 0 | ||||||||||
|
9000.24 |
|
|
9000.24/4 | 2 | 2 | 147 | 61 | 130 | 32 | 19.5 | 5.5 | 112 | 36/46 |
|
9000.24/7 | 6 | 1 | ||||||||||
|
9000.24/10 | 10 | 0 | ||||||||||
|
9000.Q |
|
|
9000.Q/1 | 0 | 1 | 75 | 61 | 58 | 32 | 19.5 | 5.5 | 43 | 43 |
|
9000.Q/4 | 4 | 0 | ||||||||||
|
9000.R |
|
|
9000.R/2 | 2 | - | 75 | 42 | 58 | 5 | 19.5 | 5.5 | 43 | 24 |
|
9000.R/3 | 3 | - | 99.5 | 42 | 83 | 5 | 19.5 | 5.5 | 65 | 24 | ||
|
9000.R/4 | 4 | - | 120 | 42 | 103 | 5 | 19.5 | 5.5 | 86 | 24 | ||
|
9000.R/5 | 5 | - | 147 | 42 | 130 | 5 | 19.5 | 5.5 | 112 | 24 |
