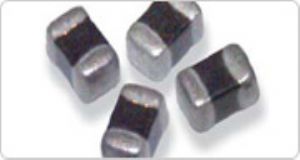

TE connectivity 鐵氧體磁珠

概述

Type BMB-B Series
These beads are designed for high speed applications. The BMB-B Series will minimise the attenuation of the signal wave form due to its sharp impedance characteristics.This series is offered in 04:02, 06:03 and 08:05 package sizes.
Key Features

Effective EMI Protection

Wide Frequency Characteristics

High Soldering Heat Resistance

Various Package Sizes Available

Suited to a Variety of Applications



Type BMB-R Series
The BMB R Series has been designed for low speed applications and specifically for use in Digital Sound circuitry and similar to prevent ringing. These chip devices have been designed to generate high impedances at low frequencies.
The R series is offered in two sizes 06:03 and 08:05
Key Features

High Impedance at Lower Frequency

Prevents Signal Ringing

Wide Frequency Characteristics

Suited to a Variety of Applications


Type BMB-L Series
The L series exhibits a low DC resistance across a wide range of impedance with a higher current capability than the A series.These are suitable for use on signal delay lines handing larger current and are available in 06:03 and 08:05 packages according to impedance requirements.
Key Features

Low DC Resistance

High Current Capability

0603 and 0805 Package Sizes

Suited to Signal Delay Line Applications

Designed for Telecommunications



Type BMB-A Series
The BMB A Series of beads cover a wide range of impedance characteristics. The chip beads have a monolithic organic material construction that minimizes the effect of electromagnetic interference. These are high loss types for general use. This series is offered in 04:02, 06:03 and 08:05 package sizes.
Key Features

Effective EMI Protection

Wide Frequency Characteristics

High Soldering Heat Resistance

Various Package Sizes Available

Suited to a Variety of Applications


Type BMB-P Series
The P Series of multilayer beads is suitable for use in high current circuits due to its low dc resistance. It can match power lines to a maximum of 6 amps. The P series is available in 06:03 and 08:05 package sizes.
Key Features

Effective EMI Protection

Low DC Resistance

High Current Handling

Multiple Size Packages

Inorganic Material Construction

Suited to a Noise Filtering Applications

Designed for use in Modems etc.


序號 部件 TE 內部編號 描述 阻抗 DC電阻 最大電流 產品系列 應用 封裝形式 封裝，尺寸
1 BMB1J0070BN3JIT 1624116-3 BMB-B 0603 70R 70 ? .4 ? 200 mA BMB-B 高頻 603 1.6 x .8
2 BMB1J0120BN3JIT 1624116-4 BMB-B 0603 120R 120 ? .4 ? 200 mA BMB-B 高頻 603 1.6 x .8
3 BMB1J0120RS2 1624116-5 BMB-R 0603 120R 120 ? .4 ? 200 mA BMB-R 低頻 603 1.6 x .8
4 BMB1J0240RS2 1624116-7 BMB-R 0603 240R 240 ? .4 ? 200 mA BMB-R 低頻 603 1.6 x .8
5 BMB1J0300BN3JIT 1624116-8 BMB-B 0603 300R 300 ? .5 ? 100 mA BMB-B 高頻 603 1.6 x .8
6 BMB1J0300LN2 1624116-9 BMB-L 0603 300R 300 ? .25 ? 500 mA BMB-L 信號線 603 1.6 x .8
7 BMB1J0420BN3JIT 1-1624116-0 BMB-B 0603 420R 420 ? .5 ? 100 mA BMB-B 高頻 603 1.6 x .8
8 BMB1J0600BN3JIT 1-1624116-2 BMB-B 0603 600R 600 ? .6 ? 100 mA BMB-B 高頻 603 1.6 x .8
9 BMB1J0600RS2 1-1624116-3 BMB-R 0603 600R 600 ? .8 ? 200 mA BMB-R 低頻 603 1.6 x .8
10 BMB1J1000AN2 1-1624116-6 BMB-A 0603 1K0 1000 ? 1 ? 100 mA BMB-A 通用 603 1.6 x .8
11 BMB1J1000LN2 1-1624116-4 BMB-L 0603 1K 1000 ? 1 ? 300 mA BMB-L 信號線 603 1.6 x .8
12 BMB2A0056BN3 1624117-2 BMB-B 0805 56R 56 ? .3 ? 300 mA BMB-B 高頻 805 2.0 x 1.25
13 BMB2A0120BN3 1624117-6 BMB-B 0805 120R 120 ? .4 ? 300 mA BMB-B 高頻 805 2.0 x 1.25
14 BMB2A0120RS2 1624117-7 BMB-R 0805 120R 120 ? .3 ? 300 mA BMB-R 低頻 805 2.0 x 1.25
15 BMB2A0150AN1 1624117-8 BMB-A 0805 150R 150 ? .3 ? 300 mA BMB-A 通用 805 2.0 x 1.25
16 BMB2A0150PN2 2-1624117-8 BMB-P 0805 150R 150 ? .04 ? 3000 mA BMB-P 強電流觸點 805 2.0 x 1.25
17 BMB2A0200BN3 1624117-9 BMB-B 0805 200R 200 ? .5 ? 200 mA BMB-B 高頻 805 2.0 x 1.25
18 BMB2A0300BN3 1-1624117-2 BMB-B 0805 300R 300 ? .5 ? 200 mA BMB-B 高頻 805 2.0 x 1.25
19 BMB2A0430RS2 1-1624117-4 BMB-R 0805 430R 430 ? .5 ? 200 mA BMB-R 低頻 805 2.0 x 1.25
20 BMB2A0470LN2 2-1624117-2 BMB-L 0805 470R 470 ? .2 ? 500 mA BMB-L 信號線 805 2.0 x 1.25
21 BMB2A0060LN2 1624117-3 BMB-L 0805 60R 60 ? .05 ? 850 mA BMB-L 信號線 805 2.0 x 1.25
22 BMB2A0120AN1 1624117-4 BMB-A 0805 120R N1 120 ? .3 ? 300 mA BMB-A 通用 805 2.0 x 1.25
23 BMB2A0120AN4 1624117-5 BMB-A 0805 120R N4 150 ? .3 ? 300 mA BMB-A 通用 805 2.0 x 1.25
24 BMB2A0220AN4 1-1624117-0 BMB-A 0805 220R 220 ? .5 ? 250 mA BMB-A 通用 805 2.0 x 1.25
25 BMB2A0300AN1 1-1624117-1 BMB-A 0805 300R 300 ? .5 ? 250 mA BMB-A 通用 805 2.0 x 1.25
26 BMB2A0300LN2 1-1624117-3 BMB-L 0805 300R 300 ? .15 ? 600 mA BMB-L 信號線 805 2.0 x 1.25
27 BMB2A0600BN3 1-1624117-6 BMB-B 0805 600R 600 ? .6 ? 200 mA BMB-B 高頻 805 2.0 x 1.25
28 BMB2A0600RS2 1-1624117-7 BMB-R 0805 600R 600 ? .5 ? 200 mA BMB-R 低頻 805 2.0 x 1.25
29 BMB2A1000BN3 1-1624117-9 BMB-B 0805 1K 1000 ? .8 ? 200 mA BMB-B 高頻 805 2.0 x 1.25
30 BMB2A1000LN2 2-1624117-0 BMB-L 0805 1K 1000 ? .3 ? 350 mA BMB-L 信號線 805 2.0 x 1.25
31 BMB1J0200BN3JIT 1624116-6 BMB-B 0603 200R 200 ? .5 ? 200 mA BMB-B 高頻 603 1.6 x .8
32 BMB2A0120AN2 3-1624117-1 BMB-A 0805 120R N2 120 ? .3 ? 300 mA BMB-A 通用 805 2.0 x 1.25
33 BMB2A0600AN1 1-1624117-5 BMB-A 0805 600R 600 ? .6 ? 200 mA BMB-A 通用 805 2.0 x 1.25
34 BMB2A0750BN3 1-1624117-8 BMB-B 0805 750R 750 ? .7 ? 200 mA BMB-B 高頻 805 2.0 x 1.25
