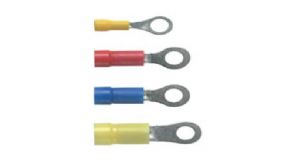

PANDUIT 乙烯絕緣環形端子

概述

? Insulation support helps to prevent wire damage in bending applications
? Ring tongue design assures a secure connection in high vibration applications
? Brazed seam protects terminal barrel from splitting during the crimp process
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up 600 V per UL 486A/B

Part	Wire Range	Color Code	Stock Thickness(In.)	Max. Ins.	Stud Size	L	W	C	Recommended Installation Tool
PV22-2R-CY	26-22 AWG	Yellow	0.02	0.110	#2	0.68	0.21	0.18	CT-600-A,CT-1525,CT-2500
PV22-4R-CY	26-22 AWG	Yellow	0.02	0.110	#4	0.68	0.21	0.18	CT-600-A,CT-1525,CT-2500
PV22-6R-CY	26-22 AWG	Yellow	0.02	0.110	#6	0.68	0.21	0.18	CT-600-A,CT-1525,CT-2500
PV22-8R-CY	26-22 AWG	Yellow	0.02	0.110	#8	0.78	0.26	0.26	CT-600-A,CT-1525,CT-2500
PV22-10R-CY	26-22 AWG	Yellow	0.02	0.110	#10	0.78	0.32	0.24	CT-600-A,CT-1525,CT-2500
PV18-4R-CY	22-18 AWG	Red	0.03	0.150	#4	0.84	0.25	0.22	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-6R-CY	22-18 AWG	Red	0.03	0.150	#6	0.86	0.25	0.22	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-8R-CY	22-18 AWG	Red	0.03	0.150	#8	0.91	0.31	0.26	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-10R-CY	22-18 AWG	Red	0.03	0.150	#10	0.94	0.31	0.27	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-14R-CY	22-18 AWG	Red	0.03	0.150	1/4"	1.11	0.46	0.37	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-56R-CY	22-18 AWG	Red	0.03	0.150	5/16"	1.11	0.46	0.39	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-38R-LY	22-18 AWG	Red	0.03	0.150	3/8"	1.19	0.53	0.42	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV18-12R-LY	22-18 AWG	Red	0.03	0.150	1/2"	1.42	0.72	0.53	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-4R-C	16-14 AWG	Blue	0.03	0.170	#4	0.84	0.25	0.19	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-6RN-C	16-14 AWG	Blue	0.03	0.170	#6	0.84	0.25	0.19	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-6R-C	16-14 AWG	Blue	0.03	0.170	#6	0.92	0.31	0.25	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-8R-C	16-14 AWG	Blue	0.03	0.170	#8	0.92	0.31	0.25	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-10R-C	16-14 AWG	Blue	0.03	0.170	#10	0.92	0.31	0.25	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-14R-C	16-14 AWG	Blue	0.03	0.170	1/4"	1.12	0.46	0.38	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-56R-C	16-14 AWG	Blue	0.03	0.170	5/16"	1.12	0.46	0.38	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-38R-L	16-14 AWG	Blue	0.03	0.170	3/8"	1.21	0.53	0.43	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV14-12R-L	16-14 AWG	Blue	0.03	0.170	1/2"	1.42	0.72	0.53	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-6R-L	12-10 AWG	Yellow	0.04	0.225	#6	1.05	0.31	0.31	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-8R-L	12-10 AWG	Yellow	0.04	0.225	#8	1.05	0.31	0.31	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-10R-L	12-10 AWG	Yellow	0.04	0.225	#10	1.05	0.31	0.31	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-14R-L	12-10 AWG	Yellow	0.04	0.225	1/4"	1.23	0.52	0.38	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-56R-L	12-10 AWG	Yellow	0.04	0.225	5/16"	1.23	0.52	0.38	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-38R-L	12-10 AWG	Yellow	0.04	0.225	3/8"	1.31	0.58	0.41	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
PV10-12R-Q	12-10 AWG	Yellow	0.04	0.225	1/2"	1.46	0.72	0.53	CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
