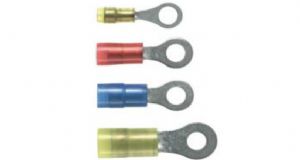

PANDUIT 尼龍絕緣環形端子
概述
? Ring tongue design assures a secure connection in high vibrationapplications
? Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up to 600 V per UL 486A/B
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C | Recommended Installation Tool | Mil. Std. Part Number |
| PN22-2R-C | 26-22 AWG | Yellow | 0.02 | 0.090 | #2 | 0.69 | 0.20 | 0.18 |
CT-600-A
CT-1525
CT-2500
|
|
| PN22-4R-C | 26-22 AWG | Yellow | 0.02 | 0.090 | #4 | 0.69 | 0.20 | 0.18 | ||
| PN22-6R-C | 26-22 AWG | Yellow | 0.02 | 0.090 | #6 | 0.69 | 0.20 | 0.18 | ||
| PN22-8R-C | 26-22 AWG | Yellow | 0.02 | 0.090 | #8 | 0.78 | 0.26 | 0.26 | ||
| PN22-10R-C | 26-22 AWG | Yellow | 0.02 | 0.090 | #10 | 0.78 | 0.31 | 0.24 | ||
| PN18-4RN-C | 22-18 AWG | Red | 0.03 | 0.145 | #4 | 0.74 | 0.22 | 0.18 |
CT-100A?
CT-600-A?
CT-1550?
CT-1551?
CT-2500?
|
MS25036-148 (Class 1 & 2) |
| PN18-4R-C | 22-18 AWG | Red | 0.03 | 0.145 | #4 | 0.80 | 0.25 | 0.22 | ||
| PN18-6RN-C | 22-18 AWG | Red | 0.03 | 0.145 | #6 | 0.77 | 0.22 | 0.18 | MS25036-101 (Class 1 & 2) | |
| PN18-6R-C | 22-18 AWG | Red | 0.03 | 0.145 | #6 | 0.80 | 0.25 | 0.22 | MS25036-102 (Class 1 & 2) | |
| PN18-8R-C | 22-18 AWG | Red | 0.03 | 0.145 | #8 | 0.86 | 0.31 | 0.25 | MS25036-149 (Class 1 & 2) | |
| PN18-10R-C | 22-18 AWG | Red | 0.03 | 0.145 | #10 | 0.88 | 0.31 | 0.25 | MS25036-103 (Class 1 & 2) | |
| PN18-14R-C | 22-18 AWG | Red | 0.03 | 0.145 | 1/4" | 1.09 | 0.45 | 0.38 | MS25036-150 (Class 1 & 2) | |
| PN18-56R-C | 22-18 AWG | Red | 0.03 | 0.145 | 5/16" | 1.09 | 0.46 | 0.38 | MS25036-104 (Class 1 & 2) | |
| PN18-38R-C | 22-18 AWG | Red | 0.03 | 0.145 | 3/8" | 1.17 | 0.53 | 0.43 | MS25036-105 (Class 1 & 2) | |
| PN18-12R-L | 22-18 AWG | Red | 0.03 | 0.145 | 1/2" | 1.35 | 0.72 | 0.53 | ||
| PN14-4R-C | 18-14 AWG | Blue | 0.03 | 0.162 | #4 | 0.78 | 0.25 | 0.20 | MS25036-152 (Class 1 & 2) | |
| PN14-6RN-C | 18-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.76 | 0.25 | 0.20 | MS25036-106 (Class 1 & 2) | |
| PN14-6R-C | 18-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.85 | 0.31 | 0.25 | MS25036-107 (Class 1 & 2) | |
| PN14-8R-C | 18-14 AWG | Blue | 0.03 | 0.162 | #8 | 0.85 | 0.31 | 0.25 | MS25036-153 (Class 1 & 2) | |
| PN14-10R-C | 18-14 AWG | Blue | 0.03 | 0.162 | #10 | 0.85 | 0.31 | 0.25 | MS25036-108 (Class 1 & 2) | |
| PN14-14R-C | 18-14 AWG | Blue | 0.03 | 0.162 | 1/4" | 1.05 | 0.46 | 0.38 | MS25036-154 (Class 1 & 2) | |
| PN14-56R-C | 18-14 AWG | Blue | 0.03 | 0.162 | 5/16" | 1.05 | 0.46 | 0.38 | MS25036-109 (Class1 & 2) | |
| PN14-38R-L | 18-14 AWG | Blue | 0.03 | 0.162 | 3/8" | 1.14 | 0.53 | 0.43 | MS25036-110 (Class 1 & 2) | |
| PN14-12R-Q | 18-14 AWG | Blue | 0.03 | 0.162 | 1/2" | 1.35 | 0.72 | 0.53 | ||
| PN10-6R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 1.06 | 0.37 | 0.31 | MS25036-111 (Class 1 & 2) | |
| PN10-8R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.06 | 0.37 | 0.31 | MS25036-156 (Class 1 & 2) | |
| PN10-10R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.06 | 0.38 | 0.31 | MS25036-112 (Class 1 & 2) | |
| PN10-14R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.21 | 0.52 | 0.38 | MS25036-157 (Class 1 & 2) | |
| PN10-56R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 5/16" | 1.21 | 0.52 | 0.38 | MS25036-113 (Class 1 & 2) | |
| PN10-38R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 3/8" | 1.29 | 0.58 | 0.43 | MS25036-114 (Class 1 & 2) | |
| PN10-12R-Q | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/2" | 1.47 | 0.72 | 0.53 |
