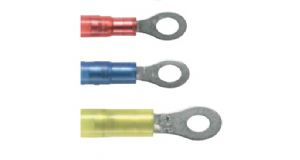

PANDUIT 漏斗口尼龍絕緣環形端子
概述
? Ring tongue design assures a secure connection in high vibration applications
? Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A?，CT-600-A?，CT-1550?，CT-1551?，CT-2500?
| Part | Wire Range | Color Code | Stock Thickness(In.) | Max. Ins. | Stud Size | L | W | C | Mil. Std. Part Number |
| PNF18-4R-C | 22-18 AWG | Red | 0.03 | 0.136 | #4 | 0.77 | 0.25 | 0.20 | |
| PNF18-6RN-C | 22-18 AWG | Red | 0.03 | 0.136 | #6 | 0.76 | 0.22 | 0.18 | MS25036-101 (Class 2) |
| PNF18-6R-C | 22-18 AWG | Red | 0.03 | 0.136 | #6 | 0.77 | 0.25 | 0.20 | MS25036-102 (Class 2) |
| PNF18-8R-C | 22-18 AWG | Red | 0.03 | 0.136 | #8 | 0.87 | 0.31 | 0.24 | MS25036-149 (Class 2) |
| PNF18-10R-C | 22-18 AWG | Red | 0.03 | 0.136 | #10 | 0.87 | 0.32 | 0.25 | MS25036-103 (Class 2) |
| PNF18-14R-C | 22-18 AWG | Red | 0.03 | 0.136 | 1/4" | 1.08 | 0.46 | 0.38 | MS25036-150 (Class 2) |
| PNF18-56R-C | 22-18 AWG | Red | 0.03 | 0.136 | 5/16" | 1.08 | 0.46 | 0.39 | MS25036-104 (Class 2) |
| PNF18-38R-C | 22-18 AWG | Red | 0.03 | 0.136 | 3/8" | 1.16 | 0.53 | 0.41 | MS25036-105 (Class 2) |
| PNF14-4R-C | 16-14 AWG | Blue | 0.03 | 0.162 | #4 | 0.78 | 0.25 | 0.18 | MS25036-152 (Class 2) |
| PNF14-6RN-C | 16-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.78 | 0.25 | 0.18 | MS25036-106 (Class 1 & 2) |
| PNF14-6R-C | 16-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.87 | 0.31 | 0.24 | MS25036-107 (Class 2) |
| PNF14-8R-C | 16-14 AWG | Blue | 0.03 | 0.162 | #8 | 0.87 | 0.31 | 0.25 | MS25036-153 (Class 2) |
| PNF14-10R-C | 16-14 AWG | Blue | 0.03 | 0.162 | #10 | 0.85 | 0.31 | 0.29 | MS25036-108 (Class 2) |
| PNF14-14R-C | 16-14 AWG | Blue | 0.03 | 0.162 | 1/4" | 1.06 | 0.46 | 0.40 | MS25036-154 (Class 2) |
| PNF14-56R-C | 16-14 AWG | Blue | 0.03 | 0.162 | 5/16" | 1.06 | 0.46 | 0.40 | MS25036-109 (Class 2) |
| PNF14-38R-L | 16-14 AWG | Blue | 0.03 | 0.162 | 3/8" | 1.14 | 0.53 | 0.45 | MS25036-110 (Class 2) |
| PNF10-6R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 1.06 | 0.37 | 0.31 | MS25036-111 (Class 1 & 2) |
| PNF10-8R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.06 | 0.37 | 0.31 | MS25036-156 (Class 2) |
| PNF10-10R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.06 | 0.37 | 0.31 | MS25036-112 (Class 2) |
| PNF10-14R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.21 | 0.52 | 0.38 | MS25036-157 (Class 2) |
| PNF10-56R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 5/16" | 1.21 | 0.52 | 0.38 | MS25036-113 (Class 2) |
| PNF10-38R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 3/8" | 1.29 | 0.58 | 0.43 | MS25036-114 (Class 2) |
