DELPHI J1939 連接器系列
概述
Today's commercial vehicles monitor many functions critical for the efficient operation of the vehicle. As government regulations increase, the communication requirements of each vehicle will also grow. The Controller Area Network (CAN) provides the critical communication for the on/off road commercial vehicle market. The SAE (Society of Automotive Engineers) J1939 specification defines electrical system requirements, including a J1939 terminating resistor. This terminating resistor is required to be placed at both ends of the main communication backbone.

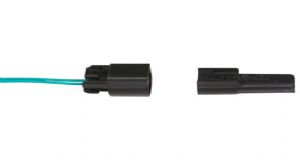

The Delphi J1939 Terminating Resistor is an insert molded resistor end cap which mates to a sealed Delphi GT connection. The resistor blades and mating terminal are gold plated to provide a reliable contact interface. This product provides a cost effective in-harness option for the CAN system.
Benefit
- Cost-effective and space-efficient design
- Complies with SAE J1939 standards
- Gold plated terminal contact interface for high reliability
- Sealed connection system for environmental protection
- Mating connector provides connector seal protection/retention, and terminal position assurance (TPA)
- Robust for use in high-vibration and rugged environments
- Easy to install/easily replaced in service
Typical Applications
The cost-effective Delphi J1939 Terminating Resistor is ideally suited for use with CAN bus systems designed to help meet the increased loads on electrical/electronic architecture systems in commercial vehicles, including off-highway agricultural and construction equipment.
Part Information
| Part Number | Description |
| 15429045 |
Assembly connector 2M GT 150 sensor |
| 13510085 | 2-way 150 GT sealed (mating harness connector) |
| 15355128 | TPA (terminal position assurance) |
| 12191152 | Cable seal—white (1.20 mm -1.90 mm diameter) tape |
| 12191226 | Cable seal—white (1.20 mm -1.90 mm diameter) loose |
| 12191153 | Cable seal—blue (1.86 mm - 2.40 mm diameter) tape |
| 12191227 | Cable seal—blue (1.86 mm - 2.40 mm diameter) loose |
| 15326426 | Terminal female gold plated (0.5 mm2 - 0.35 mm2) |
| 15326427 | Terminal female gold plated (1.0 mm2 - 0.8 mm2) |
The Delphi J1939 Terminating Resistor is currently available in ten (10) resistor values. Review product print 13534897 for more information.
