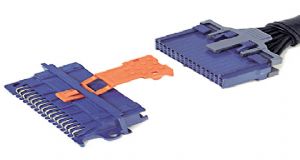

DELPHI Micro-Pack 連接器
概述
Delphi Micro-Pack Connectors are a family of electronic connections designed to meet the needs of low energy (<5 amps), high density applications. They can be packaged as headers or in-lines and are available unsealed or sealed. Filtered or shielded systems are available for protection against electromagnetic interference (EMI). A 1 mm male pin is used in both the 100 Series (unsealed) and 100W Series (sealed) systems.
- 100 Series female terminal—utilizes a box design with four contact points
- 100W Series female—employs a sleeve configuration
Benefits
- Low energy (<5 amps), high density capabilities allow many electronic signals to be accommodated in one space saving connector
- Filtered or shielded systems protect against EMI
- 3.0 mm to 3.5 mm centerlines accommodate applications where space is limited
- Mechanical assist and bolt-together designs enable ergonomic assembly/disassembly
- Improved one-piece (vs. two-piece) female terminal for sealed applications
- Sealed version for excellent resistance to temperature, chemicals and abrasion (100W)
- Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability
Typical Markets
- Commercial vehicles
- Marine
Typical Applications
1 mm pin connections for low power and electronic devices
