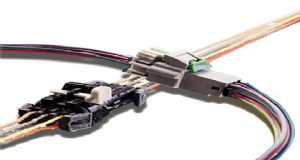

DELPHI Metri-Pack 連接器
概述
Delphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design. Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps.
Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE? (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.
Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:
- High-performance interconnects in sealed or unsealed versions
- Custom-engineered direct connections to motors, switches, sensors and other devices
- Environmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environments
- Junction blocks and electrical centers
Benefits
- Pass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)
- Extended product range offers significant design and application versatility
- Used in high current to low energy circuits for electrical versatility
- Strength and stability of terminals helps assure correct alignment
- Utilizes internationally standard male blade sizes for design flexibility
- Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability
- Sealed version for excellent resistance to temperature, chemicals and abrasion
- Testing to SAEJ2030
Typical Applications
Metri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.
Application Guidelines
|
150 Series |
280 Series |
480 Series | 630 Series | 800 Series | |
|
Cable Range Sealed |
0.35 – 1.0 mm2 |
0.35 – 5.0 mm2 | 0.35 – 5.0 mm2 | 0.50 – 5.0 mm2 | 2.0 – 8.0 mm2 |
|
Cable Range Unsealed |
0.35 – 1.0 mm2 | 0.35 – 5.0 mm2 | 0.50 – 5.0 mm2 | 0.35 – 5.0 mm2 | 2.0 – 8.0 mm2 |
| Current Range | 0 – 14 amps | 0 – 30 amps | 0 – 42 amps | 0 – 46 amps | 0 – 60 amps |
| Temperature Range | -40°C to 125°C | -40°C to 125°C | -40°C to 125°C | -40°C to 125°C | -40°C to 125°C |
| Resistance | <10 mΩ@ 20mV | <10m Ω@ 20mV | <10 mΩ@ 20mV | <10 mΩ@ 20mV | <10 mΩ@ 20mV |
| Voltage Drop | <10.0 mV/amp | <3.0 mV/amp | <3.0 mV/amp | <3.0 mV/amp | <3.0 mV/amp |
|
Centerline Spacing Unsealed |
3.5 mm | 5.0 mm |
6.9 mm |
8.5 mm | 10.3 mm |
|
Centerline Spacing Sealed |
6.0 mm | 7.7 mm |
9.5 mm |
10.8 mm |
14.0 mm |
| Blade Width | 1.5 mm | 2.8 mm |
2.8 mm |
6.3 mm |
8.0 mm |
The general application guidelines above are for reference only and may not account for all the variables that would be present in an actual application. For additional detailed product performance information, contact Delphi.
