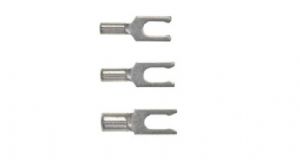

PANDUIT 叉形鎖式裸端

概述

? Locks in place for secure connection
? Fork design provides for fast and easy installation, without the need to remove fastener
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Maximum recommended operating temperature 302°F (150°C)
? UL and CSA rated up to 2000 V per UL 486A/B


Part Wire Range Stock Thickness(In.) Stud Size L W C Recommended Installation Tool
P18-6LF-C 22-16 AWG 0.03 #6 0.68 0.27 0.22 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-6LFW-C 22-16 AWG 0.03 #6 0.7 0.29 0.22 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-8LF-C 22-16 AWG 0.03 #8 0.74 0.29 0.23 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-10LFN-C 22-16 AWG 0.03 #10 0.74 0.28 0.23 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-10LF-C 22-16 AWG 0.03 #10 0.74 0.33 0.23 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-6LF-C 18-14 AWG 0.03 #6 0.7 0.25 0.22 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-6LFW-C 18-14 AWG 0.03 #6 0.7 0.29 0.22 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-8LF-C 18-14 AWG 0.03 #8 0.77 0.29 0.27 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-10LFN-C 18-14 AWG 0.03 #10 0.77 0.29 0.27 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-10LF-C 18-14 AWG 0.03 #10 0.77 0.33 0.27 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P10-6LF-L 14-10 AWG 0.04 #6 0.77 0.3 0.23 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
P10-8LF-L 14-10 AWG 0.04 #8 0.79 0.3 0.23 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
P10-10LF-L 14-10 AWG 0.04 #10 0.79 0.34 0.23 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
P10-14LF-L 14-10 AWG 0.04 1/4" 0.92 0.46 0.33 CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
