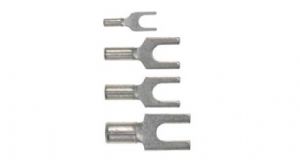

PANDUIT 叉形裸端

概述

? Fork design provides for fast and easy installation, without the need to remove fastener
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Maximum recommended operating temperature 302°F (150°C)

? UL and CSA rated up to 2000 V per UL 486A/B

Part	Wire Range	Stock Thickness(In.)	Stud Size	L	W	C	Recommended Installation Tool
P22-2F-C	26-22 AWG	0.02	#2	0.49	0.19	0.19	CT-200
P22-4F-C	26-22 AWG	0.02	#4	0.49	0.2	0.19	CT-200
P22-6F-C	26-22 AWG	0.02	#6	0.59	0.25	0.26	CT-200
P18-6FN-C	22-16 AWG	0.03	#6	0.63	0.24	0.19	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-6F-C	22-16 AWG	0.03	#6	0.63	0.3	0.21	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-8F-C	22-16 AWG	0.03	#8	0.69	0.32	0.25	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-10FN-C	22-16 AWG	0.03	#10	0.71	0.31	0.25	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-10F-C	22-16 AWG	0.03	#10	0.71	0.35	0.25	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P18-14F-C	22-16 AWG	0.03	1/4"	0.88	0.44	0.33	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-6FN-C	18-14 AWG	0.03	#6	0.63	0.24	0.2	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-6F-C	18-14 AWG	0.03	#6	0.63	0.28	0.2	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-8F-C	18-14 AWG	0.03	#8	0.69	0.31	0.23	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-10FN-C	18-14 AWG	0.03	#10	0.71	0.31	0.25	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-10F-C	18-14 AWG	0.03	#10	0.71	0.34	0.25	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P14-14F-C	18-14 AWG	0.03	1/4"	0.88	0.44	0.33	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500?
P10-6F-L	12-10 AWG	0.04	#6	0.75	0.31	0.22	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
P10-8F-L	12-10 AWG	0.04	#8	0.78	0.37	0.22	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
P10-10F-L	12-10 AWG	0.04	#10	0.78	0.37	0.23	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
P10-14F-L	12-10 AWG	0.04	1/4"	0.89	0.5	0.3	CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
