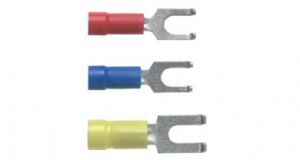

PANDUIT 乙烯絕緣折邊叉形端子
概述
? Fork design provides for fast and easy installation, without the need to remove fastener? Flange design provides extra secure connection on a variety of applications
? Insulation support helps to prevent wire damage in bending applications
? Brazed seam protects terminal barrel from splitting during the crimp process
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PV18-6FF-CY | 22-16 AWG | Red | 0.03 | 0.150 | #6 | 0.87 | 0.28 | 0.19 |
| PV18-8FF-CY | 22-16 AWG | Red | 0.03 | 0.150 | #8 | 0.94 | 0.31 | 0.23 |
| PV18-10FF-CY | 22-16 AWG | Red | 0.03 | 0.150 | #10 | 0.93 | 0.35 | 0.23 |
| PV14-6FF-C | 16-14 AWG | Blue | 0.03 | 0.165 | #6 | 0.88 | 0.28 | 0.19 |
| PV14-8FF-C | 16-14 AWG | Blue | 0.03 | 0.165 | #8 | 0.94 | 0.31 | 0.23 |
| PV14-10FF-C | 16-14 AWG | Blue | 0.03 | 0.165 | #10 | 0.94 | 0.35 | 0.23 |
| PV10-8FF-L | 14-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.03 | 0.37 | 0.22 |
| PV10-10FF-L | 14-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.03 | 0.37 | 0.22 |
