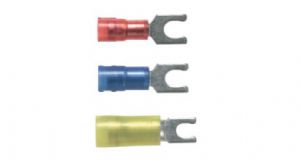

PANDUIT 漏斗口尼龍絕緣短叉鎖式端子
概述
? Locks in place for a secure connection in limited spaces? Fork design provides for fast and easy installation, without the need to remove fastener
? Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-1550,CT-1551,CT-2500
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PNF18-5SLF-C | 22-18 AWG | Red | 0.03 | 0.145 | #5 | 0.75 | 0.26 | 0.19 |
| PNF18-6SLF-C | 22-18 AWG | Red | 0.03 | 0.145 | #6 | 0.75 | 0.27 | 0.19 |
| PNF18-8SLF-C | 22-18 AWG | Red | 0.03 | 0.145 | #8 | 0.8 | 0.29 | 0.23 |
| PNF18-10SLF-C | 22-18 AWG | Red | 0.03 | 0.145 | #10 | 0.81 | 0.33 | 0.23 |
| PNF14-5SLF-C | 16-14 AWG | Blue | 0.03 | 0.162 | #5 | 0.75 | 0.25 | 0.19 |
| PNF14-6SLF-C | 16-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.75 | 0.25 | 0.19 |
| PNF14-8SLF-C | 16-14 AWG | Blue | 0.03 | 0.162 | #8 | 0.82 | 0.29 | 0.23 |
| PNF14-10SLF-C | 16-14 AWG | Blue | 0.03 | 0.162 | #10 | 0.81 | 0.33 | 0.23 |
| PNF14-14SLF-C | 16-14 AWG | Blue | 0.03 | 0.162 | 1/4" | 0.91 | 0.44 | 0.28 |
| PNF10-6SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 0.91 | 0.25 | 0.17 |
| PNF10-8SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 0.92 | 0.29 | 0.22 |
| PNF10-10SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 0.93 | 0.33 | 0.22 |
| PNF10-14SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.02 | 0.45 | 0.28 |
