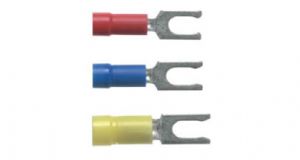

PANDUIT 乙烯絕緣叉形鎖式端子
概述
? Locks in place for secure connection? Fork design provides for fast and easy installation, without the need to remove fastener
? Insulation support helps to prevent wire damage in bending applications
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A?,CT-600-A?,CT-1550?,CT-1551?,CT-2500?
| Part | Wire Range | Color Code | Stock Thickness(In.) | Max. Ins. | Stud Size | L | W | C |
| PV18-6LF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #6 | 0.9 | 0.27 | 0.22 |
| PV18-6LFW-CY | 22-18 AWG | Red | 0.03 | 0.15 | #6 | 0.9 | 0.29 | 0.22 |
| PV18-8LF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #8 | 0.97 | 0.29 | 0.25 |
| PV18-10LF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #10 | 0.97 | 0.33 | 0.25 |
| PV18-10LFN-CY | 22-18 AWG | Red | 0.03 | 0.15 | #10 | 0.97 | 0.29 | 0.25 |
| PV14-6LF-C | 18-14 AWG | Blue | 0.03 | 0.17 | #6 | 0.9 | 0.25 | 0.22 |
| PV14-6LFW-C | 18-14 AWG | Blue | 0.03 | 0.17 | #6 | 0.9 | 0.29 | 0.22 |
| PV14-8LF-C | 18-14 AWG | Blue | 0.03 | 0.17 | #8 | 0.97 | 0.29 | 0.25 |
| PV14-10LF-C | 18-14 AWG | Blue | 0.03 | 0.17 | #10 | 0.97 | 0.33 | 0.25 |
| PV14-10LFN-C | 18-14 AWG | Blue | 0.03 | 0.17 | #10 | 0.97 | 0.29 | 0.25 |
| PV10-6LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 1.03 | 0.3 | 0.23 |
| PV10-8LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.05 | 0.3 | 0.23 |
| PV10-10LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.04 | 0.34 | 0.23 |
| PV10-14LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.19 | 0.46 | 0.36 |
