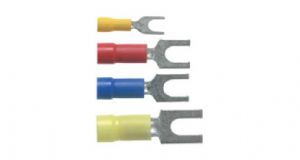

PANDUIT 乙烯絕緣叉形端子
概述
? Fork design provides for fast and easy installation, without the need to remove fastener? Insulation support helps to prevent wire damage in bending applications
? Brazed seam protects terminal barrel from splitting during the crimp process
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
? UL and CSA rated up 600 V per UL 486A/B
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PV18-6FX-CY | 22-18 AWG | Red | 0.03 | 0.17 | #6 | 0.83 | 0.3 | 0.21 |
| PV18-8FX-CY | 22-18 AWG | Red | 0.03 | 0.17 | #8 | 0.89 | 0.32 | 0.25 |
| PV18-10FX-CY | 22-18 AWG | Red | 0.03 | 0.17 | #10 | 0.91 | 0.35 | 0.25 |
| PV14-6FX-C | 18-14 AWG | Blue | 0.03 | 0.20 | #6 | 0.89 | 0.28 | 0.16 |
| PV14-8FX-C | 18-14 AWG | Blue | 0.03 | 0.20 | #8 | 0.96 | 0.31 | 0.2 |
| PV14-10FX-C | 18-14 AWG | Blue | 0.03 | 0.20 | #10 | 0.97 | 0.34 | 0.22 |
| PV10-8FX-L | 12-10 AWG | Yellow | 0.04 | 0.25 | #8 | 1.11 | 0.37 | 0.24 |
| PV10-10FX-L | 12-10 AWG | Yellow | 0.04 | 0.25 | #10 | 1.11 | 0.37 | 0.24 |
| PV10-14FX-L | 12-10 AWG | Yellow | 0.04 | 0.25 | 1/4" | 1.22 | 0.5 | 0.32 |
