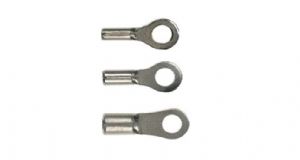

PANDUIT 高溫環形裸端
概述
? Ring tongue design assures a secure connection in high vibration applications? Nickel plated copper for temperatures up to 650°F (343°C)
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Rated up to 2000 V
| Part | Wire Range | Stock Thickness (In.) | Stud Size | L | W | C | Recommended Installation Tool |
| P18-6RHT6-C | 22-16 AWG | 0.03 | #6 | 0.62 | 0.25 | 0.21 | CT-100A,CT-200,CT-600-A,CT-1570,CT-2500 |
| P18-8RHT6-C | 22-16 AWG | 0.03 | #8 | 0.71 | 0.31 | 0.25 | CT-100A,CT-200,CT-600-A,CT-1570,CT-2500 |
| P18-10RHT6-C | 22-16 AWG | 0.03 | #10 | 0.71 | 0.31 | 0.25 | CT-100A,CT-200,CT-600-A,CT-1570,CT-2500 |
| P14-6RHT6-C | 18-14 AWG | 0.03 | #6 | 0.62 | 0.25 | 0.2 | CT-100A,CT-200,CT-600-A,CT-1570,CT-2500 |
| P14-8RHT6-C | 18-14 AWG | 0.03 | #8 | 0.71 | 0.31 | 0.25 | CT-100A,CT-200,CT-600-A,CT-1570,CT-2500 |
| P14-10RHT6-C | 18-14 AWG | 0.03 | #10 | 0.71 | 0.31 | 0.25 | CT-100A,CT-200,CT-600-A,CT-1570,CT-2500 |
| P10-6RHT6-L | 12-10 AWG | 0.04 | #6 | 0.78 | 0.31 | 0.35 | CT-100A,CT-200,CT-600-A,CT-1570,CT-1701,CT-2500 |
| P10-8RHT6-L | 12-10 AWG | 0.04 | #8 | 0.78 | 0.31 | 0.35 | CT-100A,CT-200,CT-600-A,CT-1570,CT-1701,CT-2500 |
| P10-10RHT6-L | 12-10 AWG | 0.04 | #10 | 0.81 | 0.38 | 0.33 | CT-100A,CT-200,CT-600-A,CT-1570,CT-1701,CT-2500 |
| P10-14RHT6-L | 12-10 AWG | 0.04 | 1/4" | 0.96 | 0.53 | 0.42 | CT-100A,CT-200,CT-600-A,CT-1570,CT-1701,CT-2500 |
