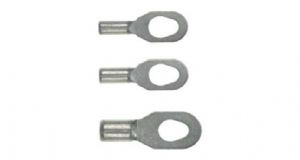

PANDUIT 多螺栓環形裸端
概述
? Ring tongue design assures a secure connection in high vibration applications? Teardrop shaped mounting hole of multiple stud terminals permits use with #6, #8, or #10 size studs
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Maximum recommended operating temperature 302°F (150°C)
? UL and CSA rated up to 2000 V per UL 486A/B
Recommended Installation Tool
CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500?
| Part | Wire Range | Stock Thickness (In.) | Stud Size | L | W | C |
| P18-610R-C | 22-16 AWG | 0.03 | #6,#8,#10 | 0.8 | 0.31 | 0.25 |
| P14-610R-C | 18-14 AWG | 0.03 | #6,#8,#10 | 0.8 | 0.31 | 0.25 |
| P10-610R-L | 14-10 AWG | 0.04 | #6,#8,#10 | 0.9 | 0.37 | 0.31 |
