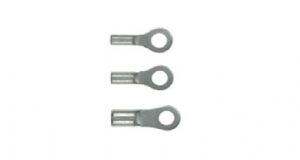

PANDUIT 環(huán)形裸端

概述

? Ring tongue design assures a secure connection in high vibration applications
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Maximum recommended operating temperature 302°F (150°C)
? UL and CSA rated up to 2000 V per UL 486A/B

Part	Wire Range	Stock Thickness(In.)	Stud Size	L	W	C	Recommended Installation Tool	Mil. Std. Part Number
P22-2R-C	26-22 AWG	0.02	#2	0.52	0.2	0.16	CT-200
P22-4R-C	26-22 AWG	0.02	#4	0.52	0.2	0.16
P22-6R-C	26-22 AWG	0.02	#6	0.52	0.2	0.16
P22-8R-C	26-22 AWG	0.02	#8	0.63	0.26	0.25
P22-10R-C	26-22 AWG	0.02	#10	0.63	0.31	0.22
P18-4R-C	22-16 AWG	0.03	#4	0.62	0.25	0.21	CT-100A? CT-200? CT-600-A? CT-1570? CT-2500?
P18-6RN-C	22-16 AWG	0.03	#6	0.6	0.22	0.19
P18-6R-C	22-16 AWG	0.03	#6	0.62	0.25	0.21
P18-8R-C	22-16 AWG	0.03	#8	0.71	0.31	0.25
P18-10R-C	22-16 AWG	0.03	#10	0.71	0.31	0.25
P18-14R-C	22-16 AWG	0.03	1/4"	0.91	0.46	0.38
P18-56R-C	22-16 AWG	0.03	5/16"	0.91	0.46	0.38
P18-38R-C	22-16 AWG	0.03	3/8"	1	0.53	0.43
P18-12R-C	22-16 AWG	0.03	1/2"	1.2	0.72	0.53
P14-4R-C	18-14 AWG	0.03	#4	0.62	0.25	0.2
P14-6R-C	18-14 AWG	0.03	#6	0.62	0.25	0.2
P14-8R-C	18-14 AWG	0.03	#8	0.71	0.31	0.25
P14-10R-C	18-14 AWG	0.03	#10	0.71	0.31	0.25
P14-14R-C	18-14 AWG	0.03	1/4"	0.91	0.46	0.38
P14-56R-C	18-14 AWG	0.03	5/16"	0.91	0.46	0.38
P14-38R-C	18-14 AWG	0.03	3/8"	1	0.53	0.43
P14-12R-L	18-14 AWG	0.03	1/2"	1.2	0.72	0.53
P10-6R-L	14-10 AWG	0.04	#6	0.78	0.31	0.31	CT-100A? CT-200? CT-600-A? CT-1570? CT-1701? CT-2500?	MS20659-165
P10-8R-L	14-10 AWG	0.04	#8	0.78	0.31	0.31
P10-10R-L	14-10 AWG	0.04	#10	0.81	0.38	0.31		MS20659-105
P10-14R-L	14-10 AWG	0.04	1/4"	0.96	0.52	0.38
P10-56R-L	14-10 AWG	0.04	5/16"	0.95	0.52	0.38		MS20659-106
P10-38R-L	14-10 AWG	0.04	3/8"	1.05	0.58	0.44		MS20659-128
P10-12R-L	14-10 AWG	0.04	1/2"	1.2	0.72	0.53
