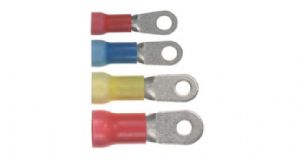

PANDUIT 大規格加寬乙烯絕緣環形端子
概述
? Ring tongue design assures a secure connection in high vibration applications
? Expanded wire entry designed to accommodate wire with a larger insulation thickness
? Insulation support helps to prevent wire damage in bending applications
? Brazed seam protects terminal barrel from splitting during the crimp process
? Internal barrel serrations assure good wire contact and maximum tensile strength
? UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
? UL rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-720,CD-720PV8-2?,CT-2600,CD-2600-PV8?
| Part | Wire Range | Color Code | Stock Thickness(In.) | Max. Ins. | Stud Size | L | W | C |
| PV8-8RX-QY | 8 AWG | Red | 0.04 | 0.36 | #8 | 1.5 | 0.42 | 0.43 |
| PV8-10RX-QY | 8 AWG | Red | 0.04 | 0.36 | #10 | 1.52 | 0.47 | 0.43 |
| PV8-14RX-QY | 8 AWG | Red | 0.04 | 0.36 | 1/4" | 1.52 | 0.47 | 0.43 |
| PV8-56RX-QY | 8 AWG | Red | 0.04 | 0.36 | 5/16" | 1.62 | 0.59 | 0.51 |
| PV8-38RX-QY | 8 AWG | Red | 0.04 | 0.36 | 3/8" | 1.62 | 0.59 | 0.51 |
| PV8-12RX-XY | 8 AWG | Red | 0.04 | 0.36 | 1/2" | 1.74 | 0.82 | 0.51 |
| PV6-8RX-E | 6 AWG | Blue | 0.05 | 0.436 | #8 | 1.61 | 0.47 | 0.43 |
| PV6-10RX-X | 6 AWG | Blue | 0.05 | 0.436 | #10 | 1.61 | 0.47 | 0.43 |
| PV6-14RX-X | 6 AWG | Blue | 0.05 | 0.436 | 1/4" | 1.61 | 0.47 | 0.43 |
| PV6-56RX-X | 6 AWG | Blue | 0.05 | 0.436 | 5/16" | 1.73 | 0.62 | 0.51 |
| PV6-38RX-X | 6 AWG | Blue | 0.05 | 0.436 | 3/8" | 1.73 | 0.62 | 0.53 |
| PV4-10RX-E | 4 AWG | Yellow | 0.05 | 0.515 | #10 | 1.87 | 0.55 | 0.53 |
| PV4-14RX-E | 4 AWG | Yellow | 0.05 | 0.515 | 1/4" | 1.87 | 0.55 | 0.53 |
| PV4-56RX-E | 4 AWG | Yellow | 0.05 | 0.515 | 5/16" | 1.94 | 0.68 | 0.53 |
| PV4-38RX-E | 4 AWG | Yellow | 0.05 | 0.515 | 3/8" | 1.94 | 0.68 | 0.53 |
| PV4-12RX-E | 4 AWG | Yellow | 0.05 | 0.515 | 1/2" | 2.03 | 0.86 | 0.53 |
| PV2-10RX-XY | 2 AWG | Red | 0.06 | 0.632 | #10 | 1.94 | 0.68 | 0.58 |
| PV2-14RX-XY | 2 AWG | Red | 0.06 | 0.632 | 1/4" | 1.94 | 0.68 | 0.58 |
| PV2-56RX-XY | 2 AWG | Red | 0.06 | 0.632 | 5/16" | 1.94 | 0.68 | 0.58 |
| PV2-38RX-XY | 2 AWG | Red | 0.06 | 0.632 | 3/8" | 1.94 | 0.68 | 0.58 |
| PV2-12RX-XY | 2 AWG | Red | 0.06 | 0.632 | 1/2" | 2.03 | 0.86 | 0.58 |
