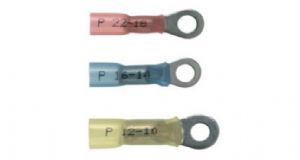

PANDUIT 熱縮環形端子
概述
? Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
? Ring tongue design assures a secure connection in high vibration applications
? Brazed seam protects terminal barrel from splitting during the crimp process
? Heat shrink installation is completed with a standard heat gun
? Minimum continuous operating temperature -65°F (-55°C)
? Maximum continuous operation temperature 230°F (110°C)
? Shrink temperature 300°F (150°C)
? UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-310
| Part | Wire Range | Color Code | Max. Ins. | Stud Size | L | W | Wire Strip Length |
| PH18-6R-Q | 22-18 AWG | Red | 0.17 | #6 | 1.05 | 0.25 | 5/16 |
| PH18-8R-Q | 22-18 AWG | Red | 0.17 | #8 | 1.08 | 0.31 | 5/16 |
| PH18-10R-Q | 22-18 AWG | Red | 0.17 | #10 | 1.08 | 0.31 | 5/16 |
| PH18-14R-Q | 22-18 AWG | Red | 0.17 | 1/4" | 1.24 | 0.47 | 5/16 |
| PH14-6R-Q | 16-14 AWG | Blue | 0.19 | #6 | 1.06 | 0.31 | 5/16 |
| PH14-8R-Q | 16-14 AWG | Blue | 0.19 | #8 | 1.03 | 0.31 | 5/16 |
| PH14-10R-Q | 16-14 AWG | Blue | 0.19 | #10 | 1.05 | 0.32 | 5/16 |
| PH14-14R-Q | 16-14 AWG | Blue | 0.19 | 1/4" | 1.24 | 0.46 | 5/16 |
| PH14-56R-Q | 16-14 AWG | Blue | 0.19 | 5/16" | 1.24 | 0.46 | 5/16 |
| PH14-38R-Q | 16-14 AWG | Blue | 0.19 | 3/8" | 1.24 | 0.53 | 5/16 |
| PH10-8R-E | 12-10 AWG | Yellow | 0.24 | #8 | 1.22 | 0.37 | 5/16 |
| PH10-10R-E | 12-10 AWG | Yellow | 0.24 | #10 | 1.2 | 0.37 | 5/16 |
| PH10-14R-E | 12-10 AWG | Yellow | 0.24 | 1/4" | 1.2 | 0.52 | 5/16 |
| PH10-38R-E | 12-10 AWG | Yellow | 0.24 | 3/8" | 1.2 | 0.59 | 5/16 |
| PH10-12R-E | 12-10 AWG | Yellow | 0.24 | 1/2" | 1.54 | 0.72 | 5/16 |
